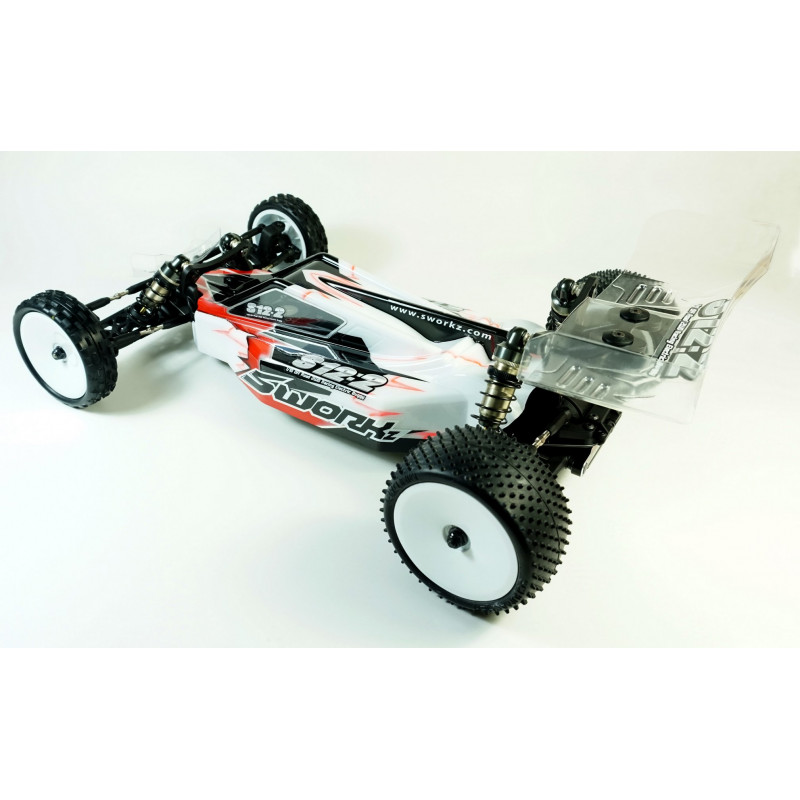

The SWORKz S12-2C Evolution (S12-2C EVO) (Carpet Edition) 1/10 2WD is designed for pure racing. It is an evolution from the successful S12-2C platform. The new geometry of the car provides optimized corner speeds and easy handling on carpet and very high grip tracks.
The S12-2C EVO features a new carpet version gear box system on a T7075 hard anodized and lightened aluminum chassis. It has a layout that allows up to 6 different battery positions. The flex of the chassis can be changed by adjusting the sideguards.
The S12-2C EVO comes with SWORKz brand new designed 1/10 Pro-Shock System (Short version). The shocks come with new Emulsion Precision Plastic Shock Caps, Shock Pistons with Seal Parts. The kit comes standard with a 4mm carbon carpet version front shock tower and newly designed front C-Hubs. The Teflon coated shock shafts provides smooth shock reactions. Black Line springs which are newly designed with rotation fixed spring holders comes standard in the SWORKz S12-2C EVO kit.
A brand new 5.5mm linkage ball stud system are included in the S12-2C EVO kit. Adjustable Ackermann plate and Carbon steering plates are included too. The S12-2C EVO has new angled lower arms that provide a lower Shock position which leads to a lower center of gravity.
The kit is equipped with a quick release gear differential system, which can be mounted in 3 different positions. The rear lower arms are angled and the rear shock tower (carpet version) has got different height positions. The weight of the gearbox is optimized to a perfect balance between size and strength.
The rear shock tower (carpet version) of the S12-2C EVO is made of carbon. The wing mount holder’s height and angle can be adjusted. The rear width of the S12-2C EVO can be changed with the new Synthesis Rear Hub System and rear CVD modularity.
The SWORKz S12-2C EVO has a front sway bar and a completely new rear sway bar holder system.
The 2-Pad Slipper of the SWORKz S12-2C EVO comes with hard anodized plates, high temperature resistant slipper pads and a spur gear protection with a engraved SWORKz logo.
The S12-2C EVO body shell has good aerodynamics.
The SWORKz development team focused on using materials, corresponding to the highest quality standards, when designing the car. You will find only 100% SWORKz quality in the S12-2C EVO kit.
- T7075 hard anodized & lightened aluminum chassis
- Adjustable flex system with various sideguards
- 6 different battery positions
- 4mm Carbon shock tower
- New C-Hub geometry
- Changeable Ackerman plate
- Carbon steering knuckle plates
- Front sway bar system
- Super light anodized front wheel axles
- Front wing mount with 65mm front wing
- Front aluminum toe in plate
- Front lower arms in angled design
- Easy adjustable Ackerman plate
- The brand 5.5mm linkage ball stud system
- Adjustable differential position
- Quick differential release system
- Lower shock position design with adjustable shock tower position
- Brand new design SWORKz 1/10 Pro Shock System (Shorty version)
- Adjustable rear wing height
- Adjustable rear wing angle
- Rear width adjustable with hubs included length adjustable CVD
- New Synthesis Rear Hub System
- Fully adjustable square aluminum toe in plate „SWORKz“ engraved
- New designed rear sway bar holder
- Rear wheel hex hard anodized
- Rear Carbon Shock tower
- Super light CAD optimized gearbox
- 2 Pad Slipper System with hard anodized plates
- Slipper Anti-Clock rotation adjustment
- High temperature resistant slipper pads
- Spur gear protection with laser Logo
- Precision plastic emulsion shock cap system
- Unique designed shock stud screws
- Hard anodized stock studs
- Black line shock spring
- Rotation protected spring holder
- Teflon hard coated shock shaft
- Hard coated shock body
- 6 Ball bearings servo system
- Quick release electronic plate
- Battery pad included
- Balanced motor position
- Body shell with optimized aerodynamic design
