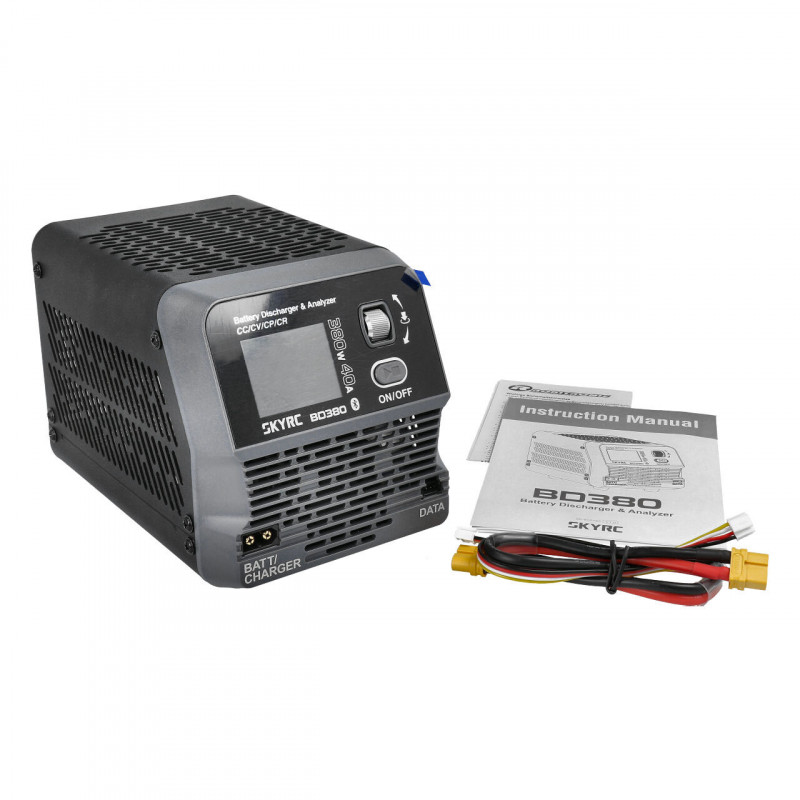

SKY RC Battery Discharger and Analyzer 40A 380W SK600153-01
SK600153-01
New product
The BD380 is a powerful discharger that allows you to comfortably discharge a battery with up to 40 amperes or 380 watts. But that's not all, as the discharger also offers the ability to measure battery performance during the process and even compare it with other batteries. Precisely measuring the capacity greatly assists in selecting the best battery for your next journey.
Availability: Disponible
Warning: Last items in stock!
By buying this product you can collect up to 128 loyalty points. Your cart will total 128 loyalty points that can be converted into a voucher of 3,20 €.
More info
No matter what type of battery you want to discharge, factors and distinguishing features such as type, size, chemistry, and the number of cells don't matter. The BD380 can handle a wide variety of batteries up to 30 volts. Inside the robust housing with an XT60 connector for the battery, there is also an effective cooling system to ensure optimal operating temperature. The large color display shows values such as the battery voltage, discharged capacity, and discharge current, among others.
Features
- 4 operating modes: CC (Constant Current), CR (Constant Resistance), CP (Constant Power), CV (Constant Voltage)
- Simple and innovative operation
- Effective cooling system
- Real-time display of battery voltage, discharged capacity, and discharge current
- Efficient testing of battery capacity for optimal battery selection for the next journey
- Controllable via integrated Bluetooth with the SkyCharger app for Android and iOS systems
- Detection of DC-stabilized power supply quality
Technical Specifications
| Operating Voltage: | 3,0 - 30,0V DC | |
| Discharge Voltage Range: | 5,9 - 30,0V (main port only) 3,0 - 30,0V (external power supply) |
|
| Low Voltage Alarm: | <3,0V | |
| High Voltage Alarm: | >max. 30,5V | |
| Discharge Power: | max. 380W | |
| Discharge Current: | 0,3 - 40,0A | |
| Operating Modes: | CC Constant Current | 0,3 - 40,0A |
| CR Constant Resistance | 1 - 100 Ohm | |
| CP Constant Power | 1 - 380W | |
| CV Constant Voltage (Note: Do not connect a battery in this mode) |
max. 180W power (Note: Set the max. current allowed for the current input voltage) |
|
| Connector: | XT60 | |
| Bluetooth Connection: | Yes (SkyCharger app) | |
| Language: | English, French, Spanish, German, Japanese, Chinese | |
| Dimensions: | 159,69 x 121,6 x 110mm | |
| Weight: | approx. 1100g | |
